Slim-Line Rollers

Product Information

The S.H.S. Slim-Line Roller range is intended for use in horizontally sliding external doors, windows and wardrobe systems.
The product is designed to fit into a “eurogroove” and offers options on track radius and wheel material.
All versions are height adjustable with two fixing screw positions and a self-aligning carriage to evenly distribute the leaf weight.

SPECIFICATIONS. & FEATURES.

• MAX LEAF WT 60Kg / ROLLER
(TOTAL LEAF WT 120Kg)
• POLYMER, PLATED STEEL OR STAINLESS STEEL WHEELS.
• BODY COMPONENT PLATED STEEL
• OR STAINLESS STEEL.
• WHEEL PROFILES FOR 4.0 5.0
• AND 6.0 DIAMETER TRACK.


PACKAGING.

60 ROLLERS / BOX. Box wt 8.5 Kg.

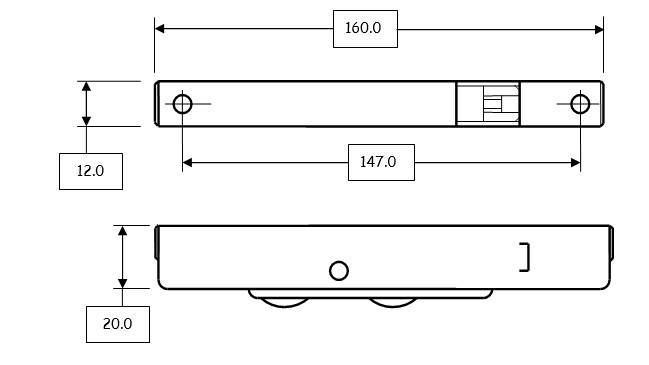

Measurements

All measurements are given in millimeters (mm).
For detailed measurements and box sizes please see the datasheet.
If there is not a datasheet or you require further details please do not hesitate to contact us.
Click to Enlage.

Click the icon to download

datasheet
